LED profile only ~ LED strip, end caps, and all other accessories are sold separately
Description

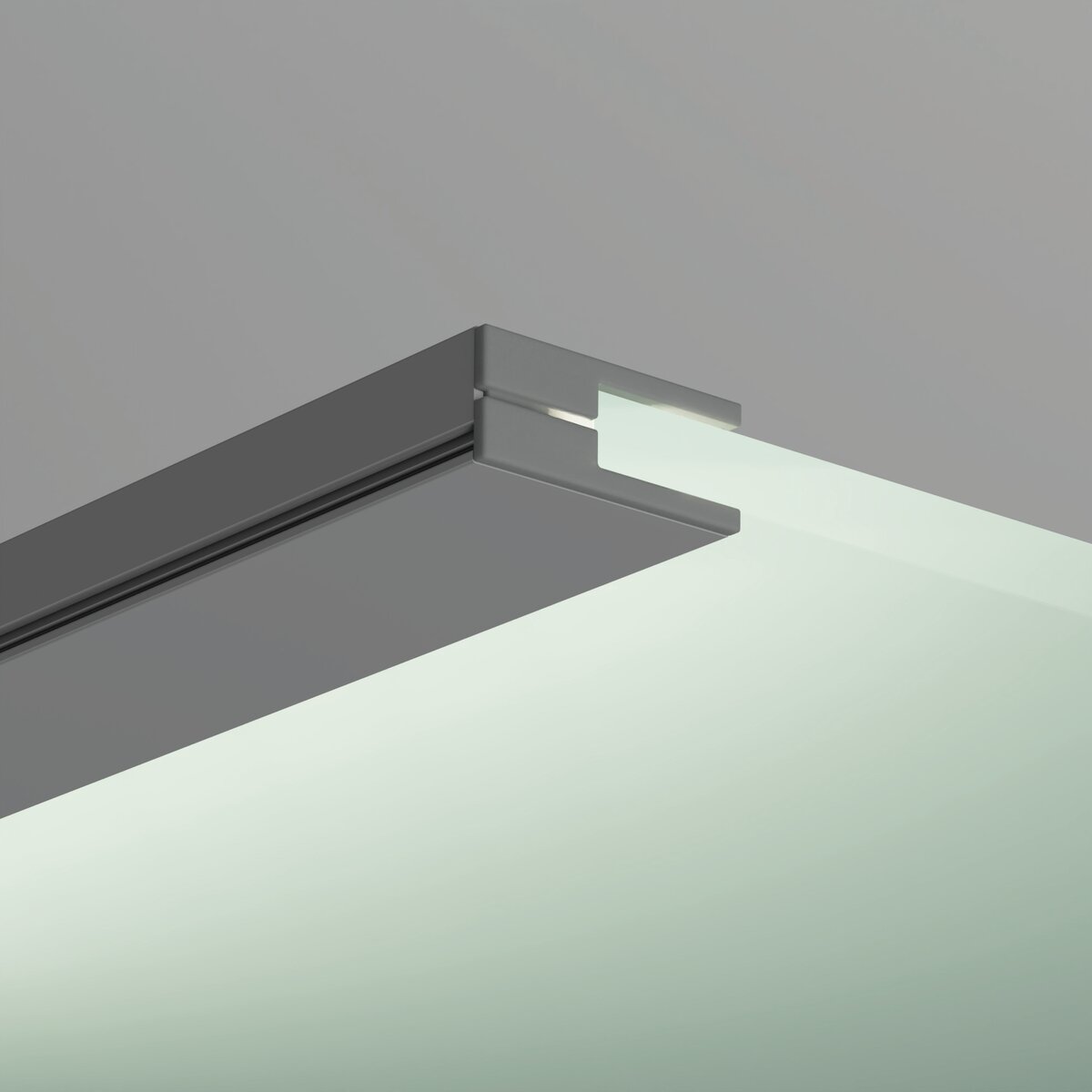

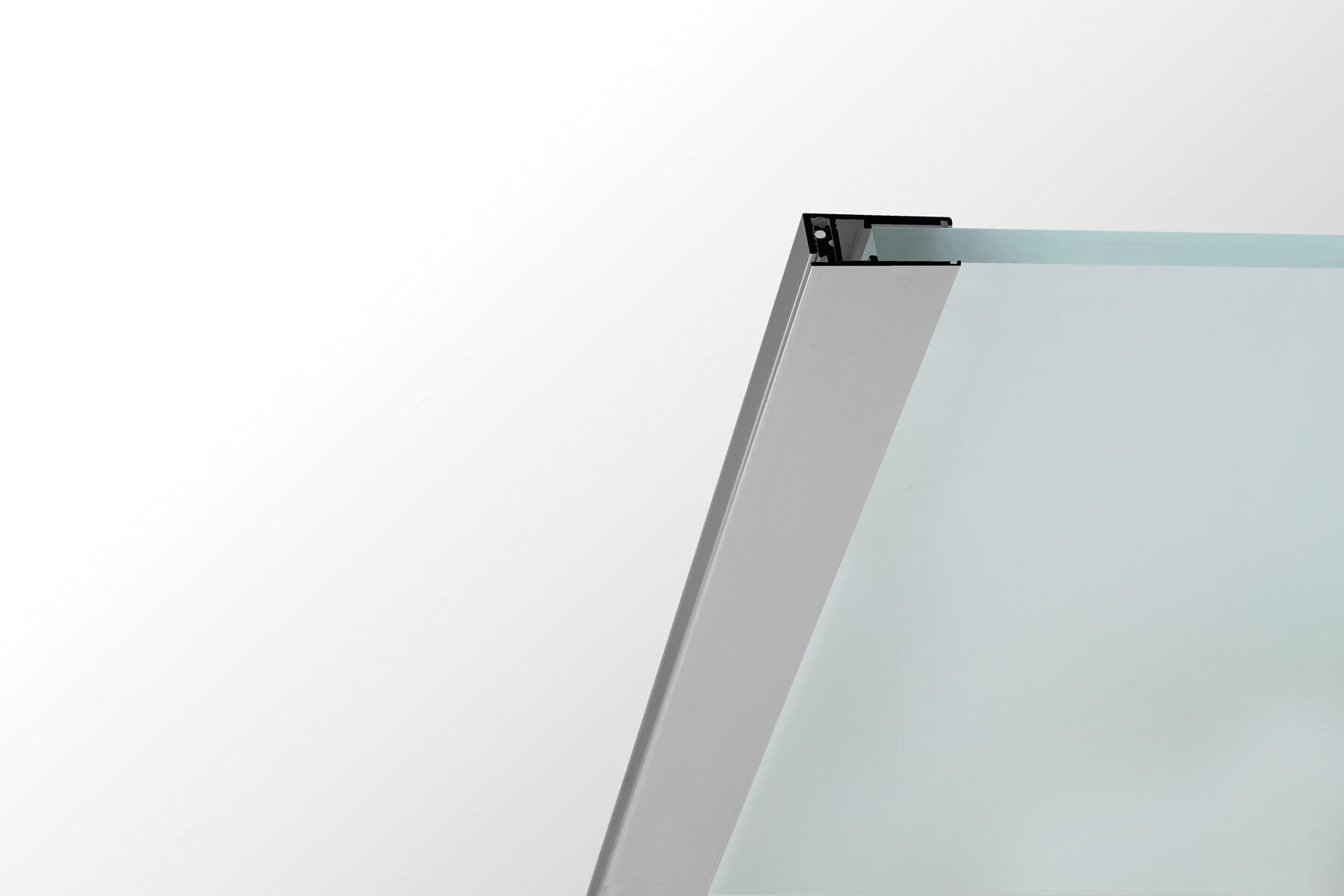

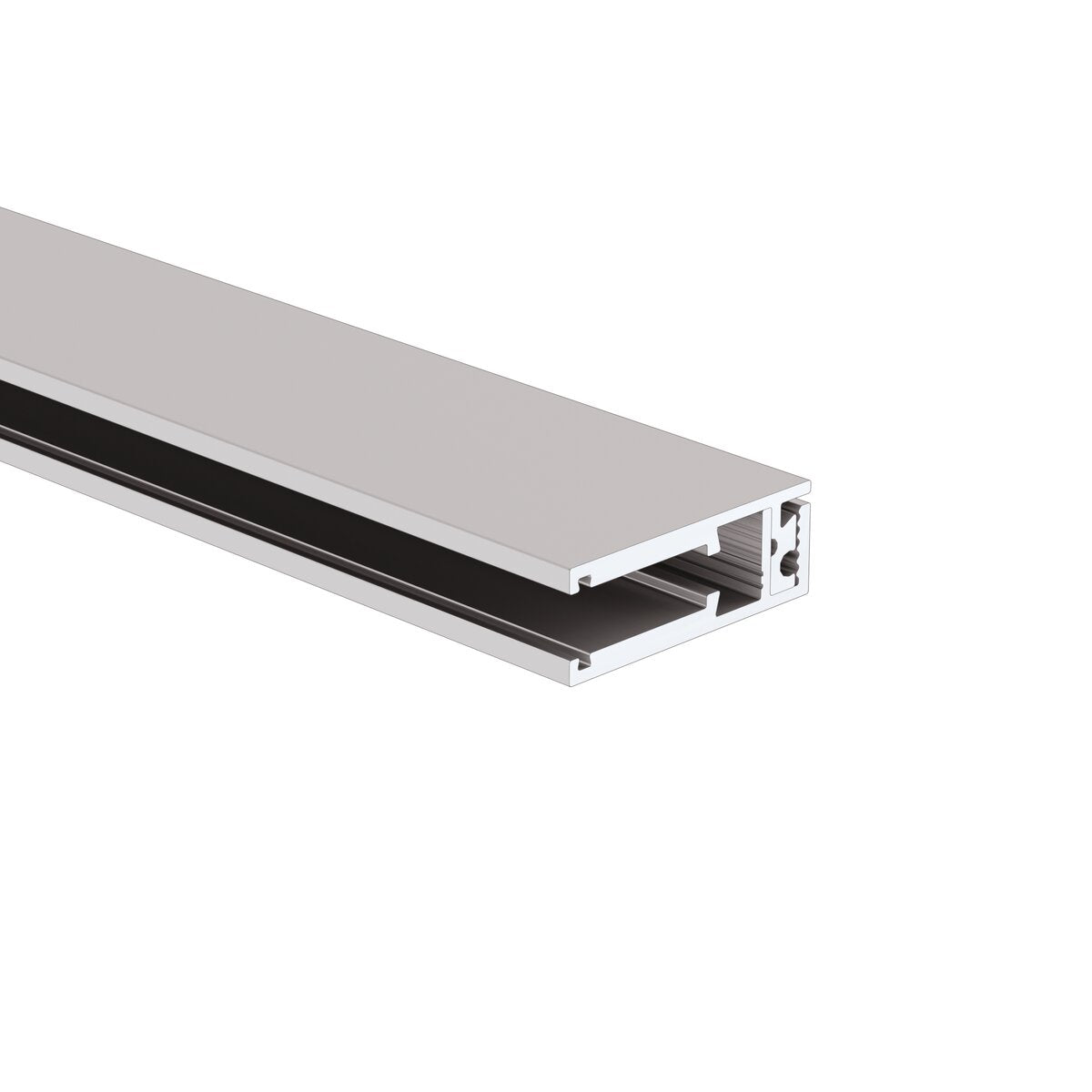

The KRAV-56 profile is made from high-quality, double-anodized aluminum, designed for edge illumination of transparent and frosted panels. It accommodates panel thicknesses of 5mm ? 6mm (0.20″ ? 0.24″) and consists of two extrusions: one which holds the LED strip, and the other closing extrusion with double-sided mounting tape and a silicone cord for a secure fit.
Installation is quick and reliable using self-adhesive tape and clasps, ensuring easy and stable mounting to panel edges.

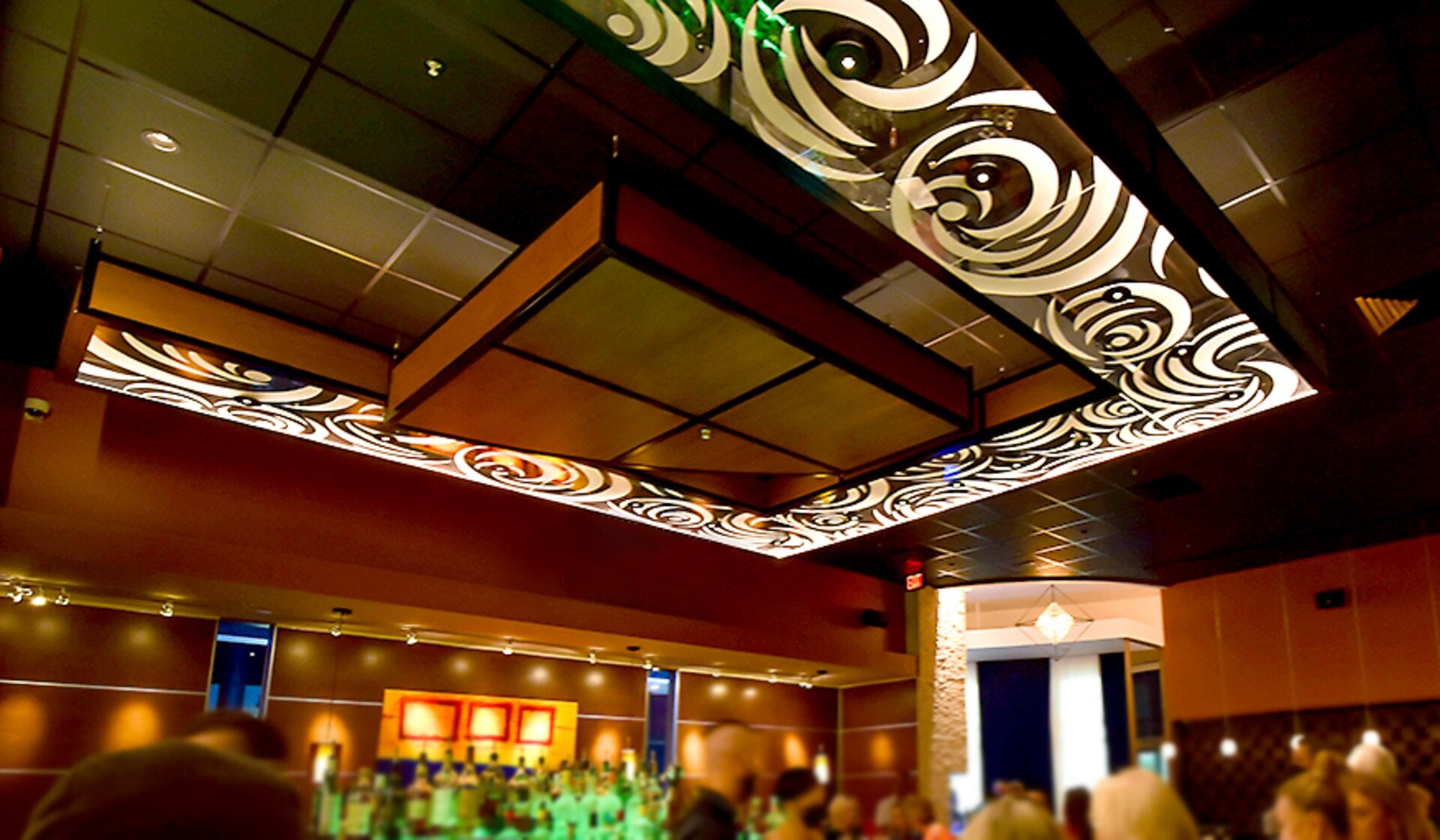

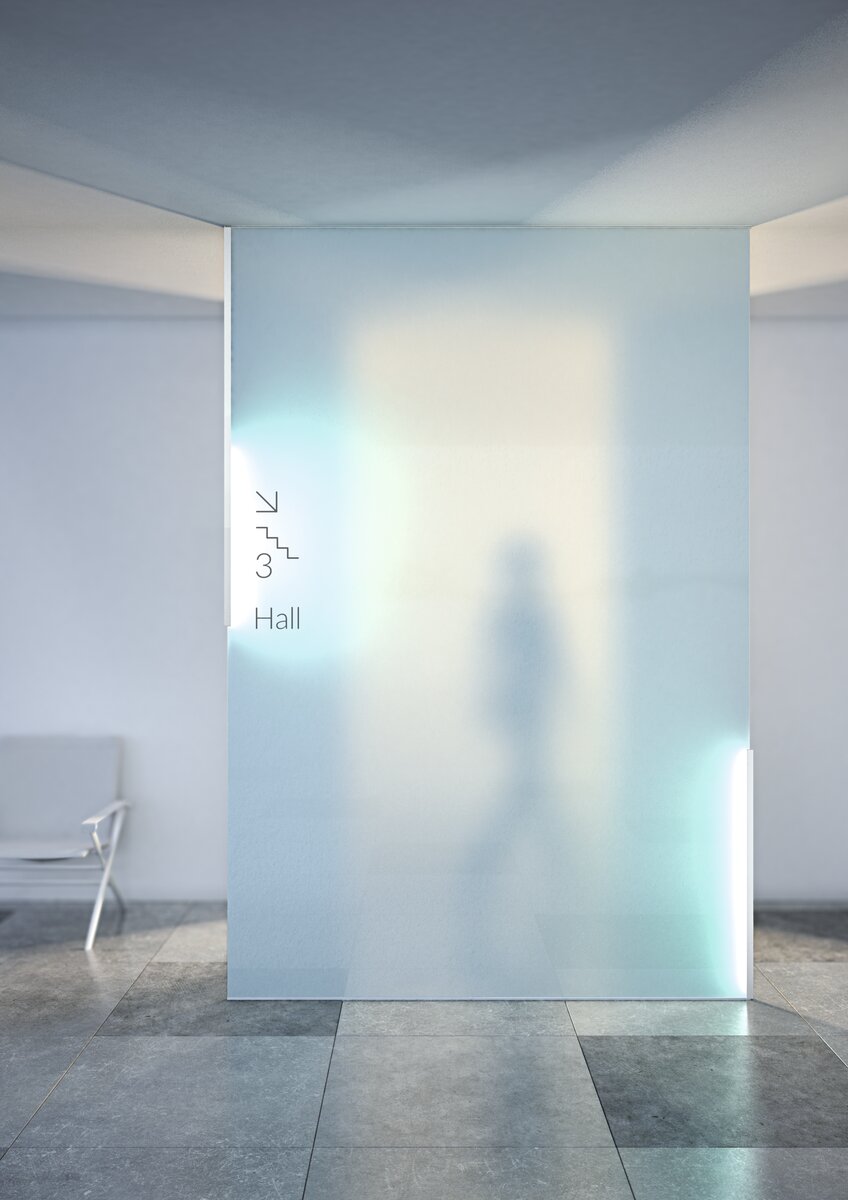

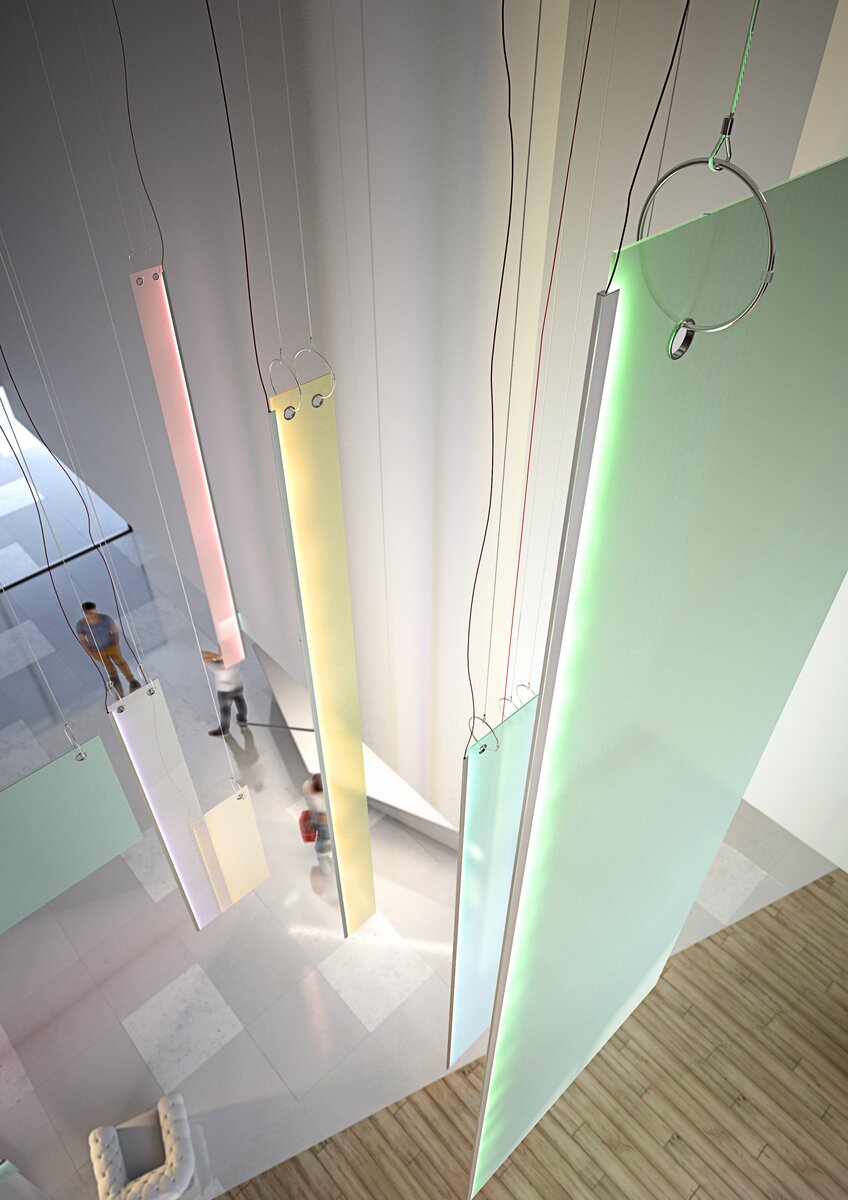

The KRAV-56 LED extrusion provides uniform edge lighting for glass or plastic panels, making it ideal for illuminating signs, inscriptions, and logos. It’s also suitable for decorative and functional lighting applications in kitchens, living rooms, galleries, and museums.
Please note that this LED extrusion is a lighting fixture, not a structural element.
General specifications
- Material: Aluminum
- Supported material thickness: 5?6mm (0.20?0.24″)

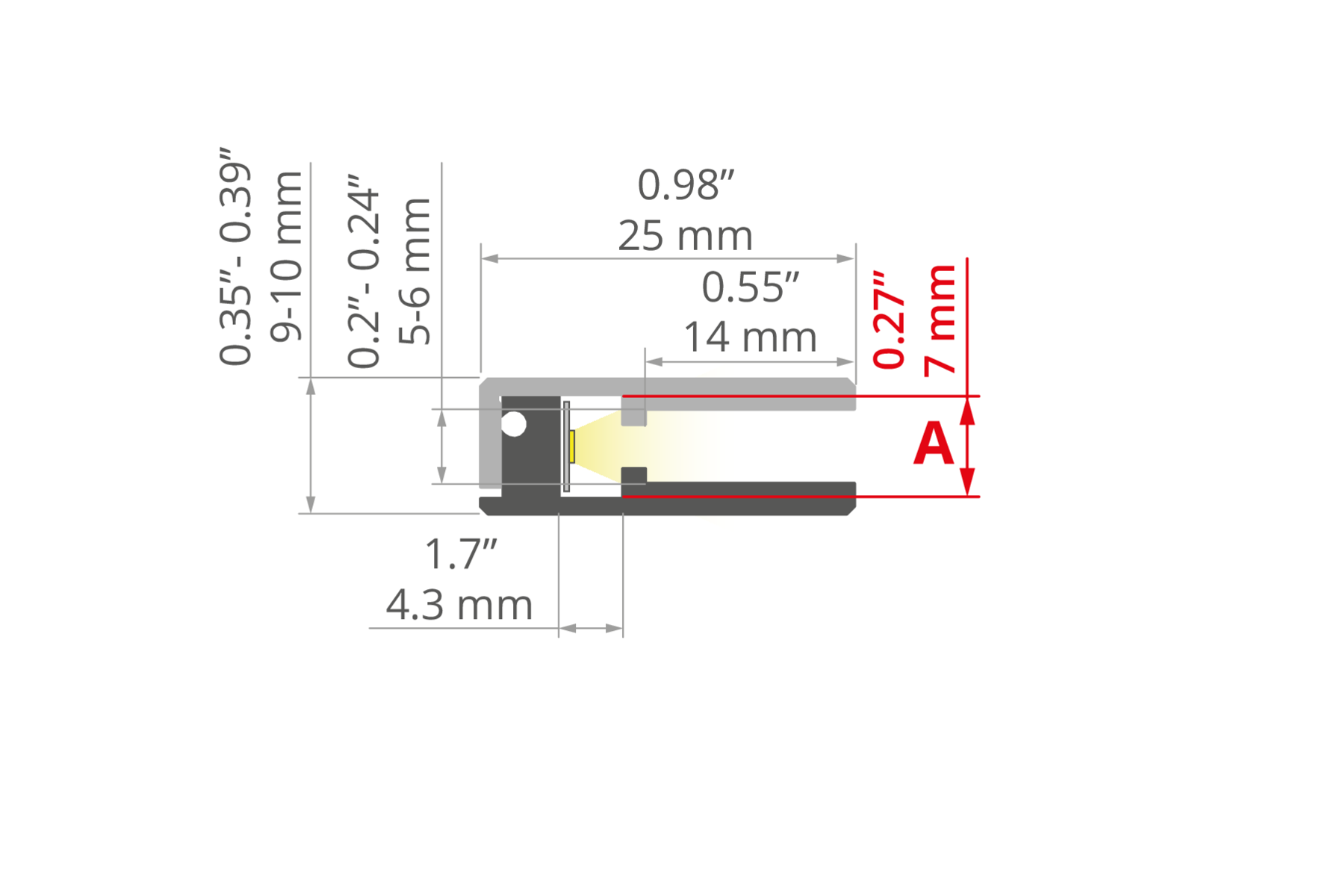

- Overall dimensions: 9?10mm x 25mm (0.35?0.39″ x 1″)
- Max LED strip width: 7mm (0.27″)
- Max LED strip power: 9.5 W/m
- Protection rating: IP20
Downloads
Important notes
- You can easily cut LED profiles by hand or by machine.
- We recommend double-checking the measurements before cutting LED profiles and covers to avoid any unnecessary loss. Please note that if you cut LED profiles and covers, we cannot refund or replace them.
- We ship items in stock the same day from Knoxville, Tennessee, United States. Our team dedicates themselves to carefully packing and safely delivering all packages to their destination.
- Bulk pricing is available on request.
